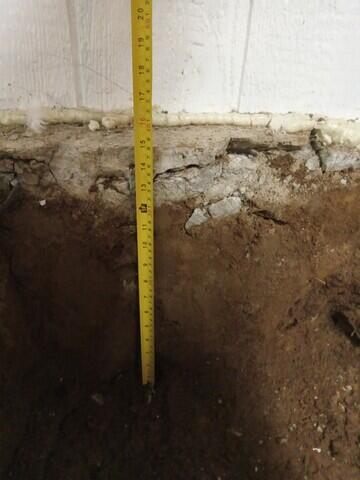

Footing escavation
A large footing is installed. First the a hole is dug down to add concrete.

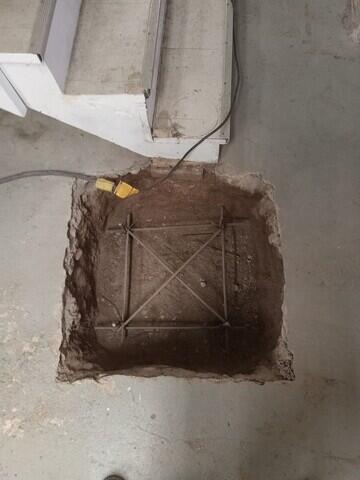

Gravel and re-bar
Some gravel and re-bar is added before concrete.

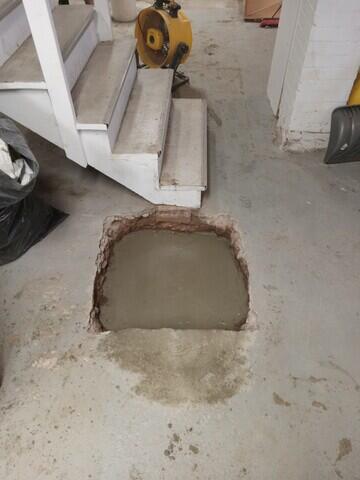

concrete
Finally concrete will fill the 18" cube

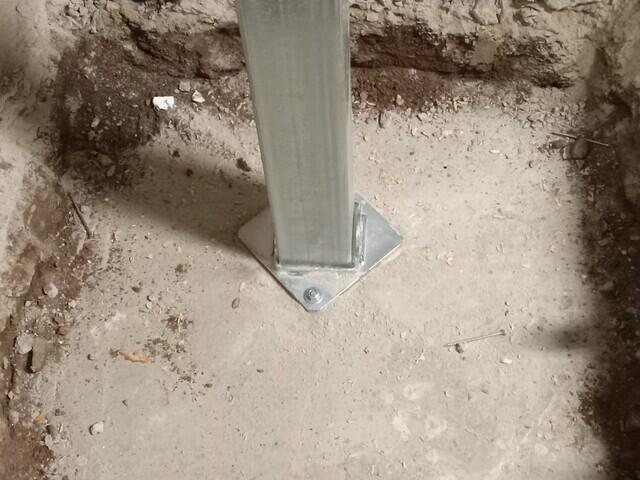

Smartjack attached
A galvanized Smartjack is attached to the footing.

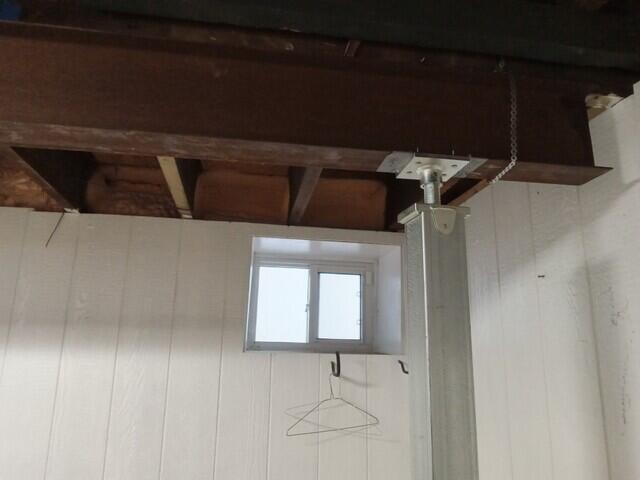

W-8 beam
This is not the usual beam that Omni installs but this is what the engineer spe'd out

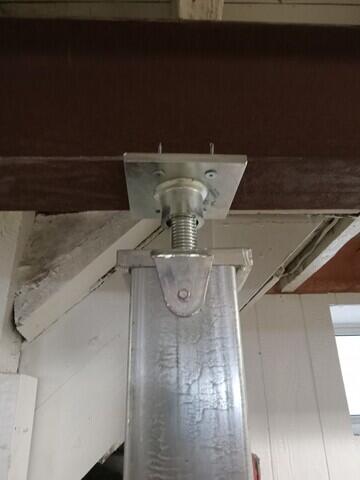

Adjustment
The Smartjack features a large adjustment

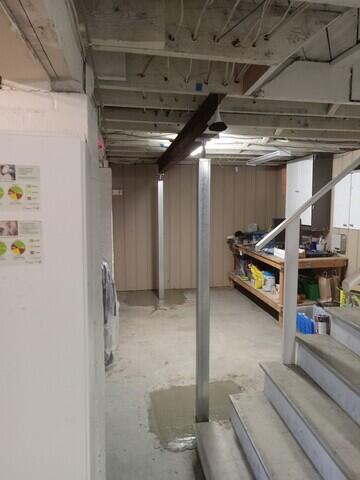

Smartjacks and re-concrete
The Smartjacks are in place and the floor is re-concreted back.

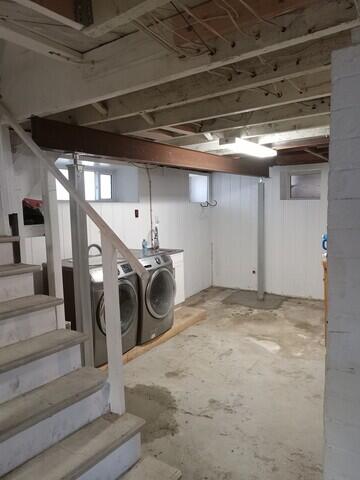

Support for stair cavity
The beam is located next to the stairwell where the floor is at it's weakest.
