Photo Album: New Triplesafe Sump pump system in Ancaster, On

Ed has a home in Ancaster with a builder sump that was inadequate. Omni Basement Systems installed the Triplesafe sump pump system in place of the builder pump. The old sump liner had to be removed and a new, larger liner was installed along with three pumps. Two are zoeller cast-iron, AC pump and the third is DC operated back-up pump.

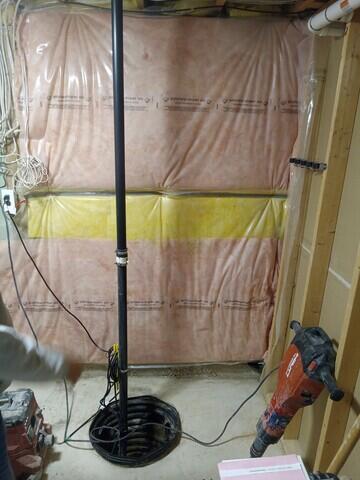

Builder pump

typical builder install. A corrugated liner with an open pit and no perforations to allow water from under the floor.

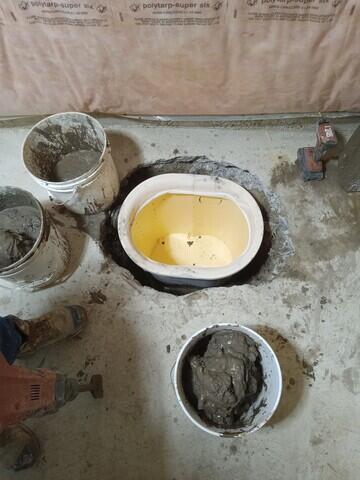

Liner removed and new liner in

The Triplesafe liner is larger than the builder pit. A larger hole is opened up in the floor and the liner is set in place.

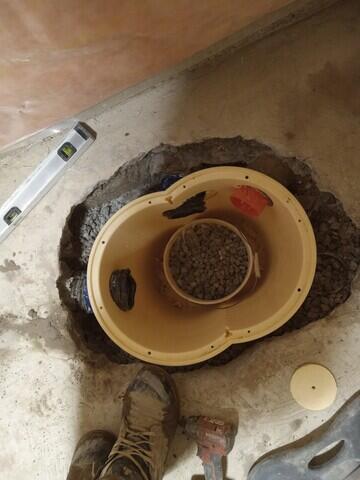

Weepers added

The existing pit served to pump water from the exterior weeping tile. These weeper drains are added to new liner.

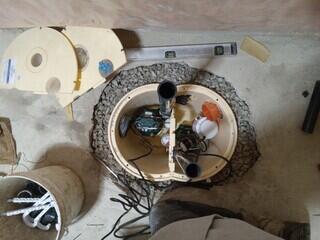

3 pumps are added

As you can see, three pumps are installed into the Triplesafe liner.

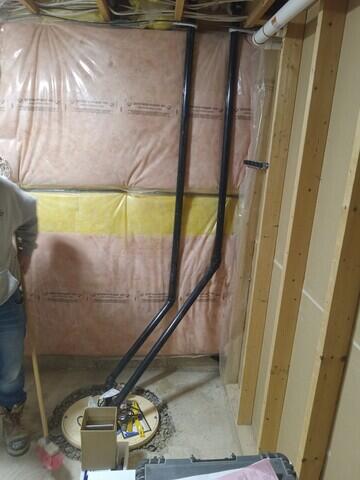

Two discharge lines.

The triplesafe features two discharge lines.

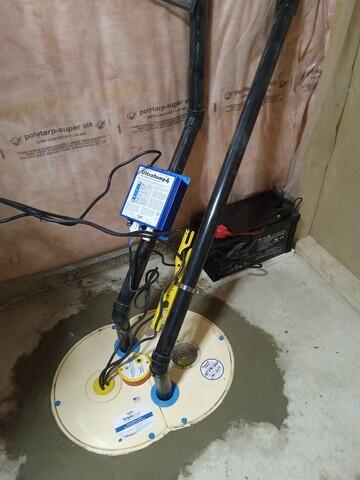

Floor restored

After the pumps are installed and the discharge lines are connected, The floor can be restored. The large 120amp hour battery sits on the floor.

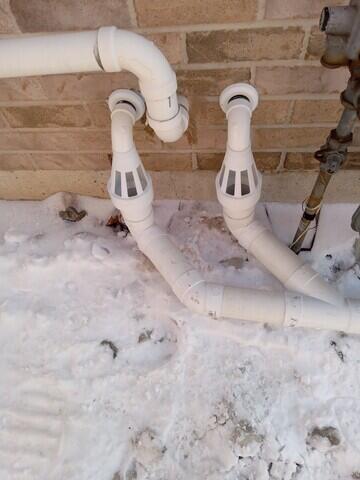

Discharge with Iceguards

The two discharge lines have 2 Iceguards to protect the discharge from freezing. Frozen discharge lines are never a good thing for sump systems. The pumps will keep running and they will eventually burn out.
