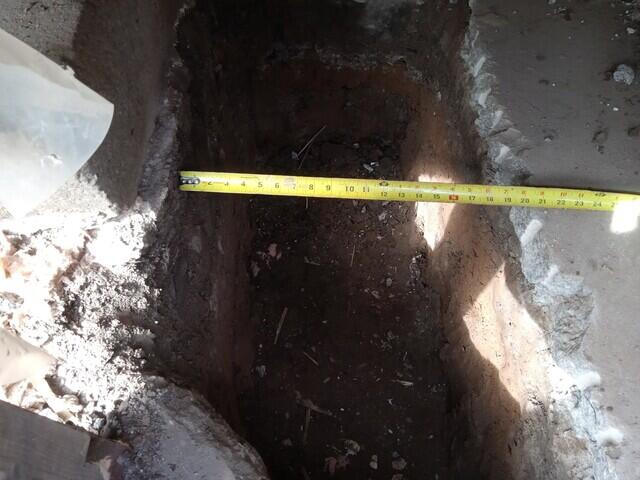

Footing
Before the jacks are installed a footing is opened up in the ground.

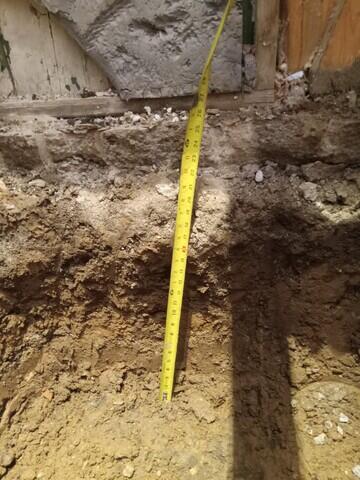

Depth of footing
The engineer designed the footing to be over 24"

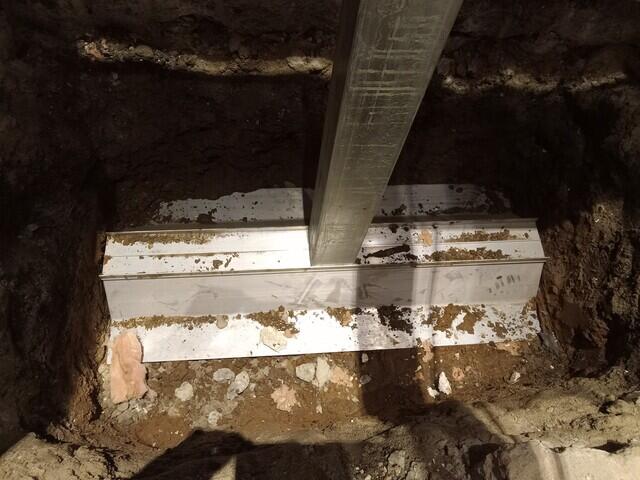

base plate
A 36" base plate is installed to support the load

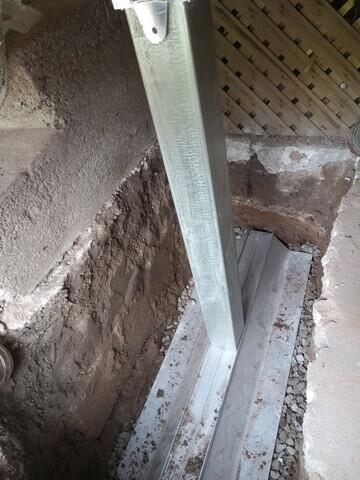

Jack
The jack posts are set in place.

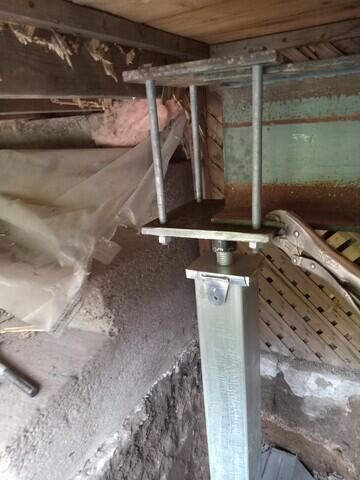

Joiner
A bracket is used when there is a joint in the beam.

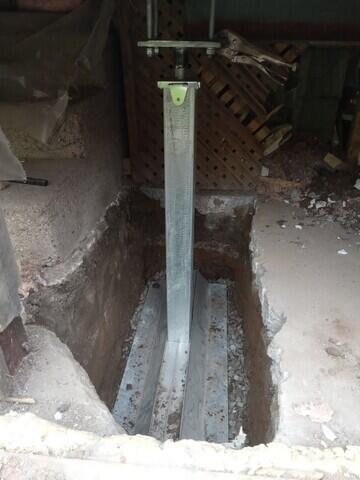

Upper bracket attached
Differ brackets are used depending if it is joint or under the beam

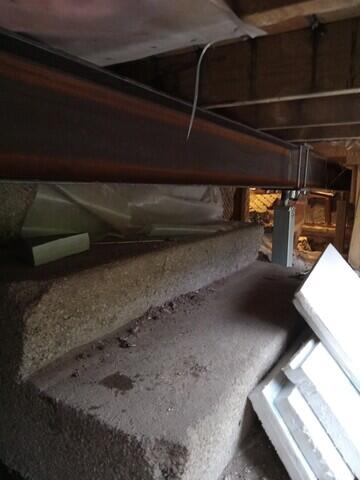

Specified Beam
I just want to point out that the beam here is not our product but what is specified by the engineer.

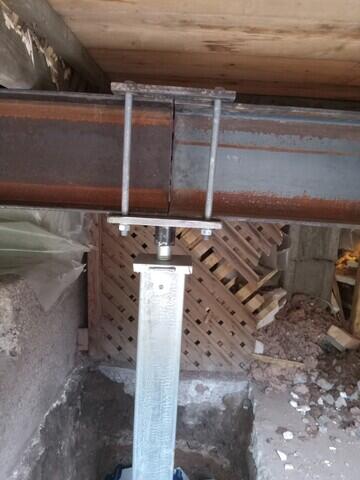

Joint
Because the joint needs to be support a special bracket is used.
Insulation.
because this area is expose to the cold weather, the engineer specified that the footing has to be frost protected.

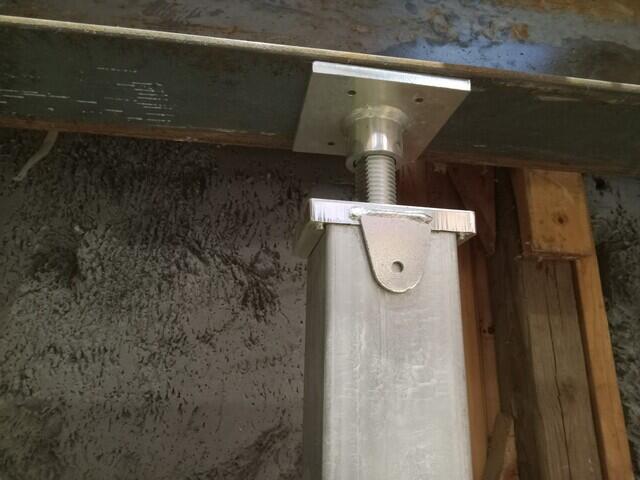

Under beam bracket
When there is no joint, a square plate is used to support the beam.
