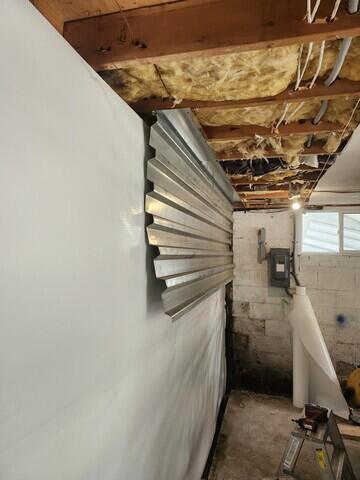

Corrugated steel panels
Corrugated steel panels are applied to the wall. They are hung from the floor joists above by a special bracket.

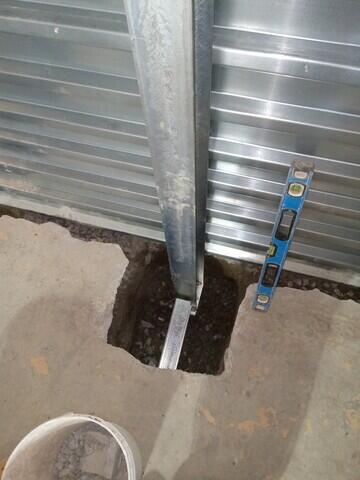

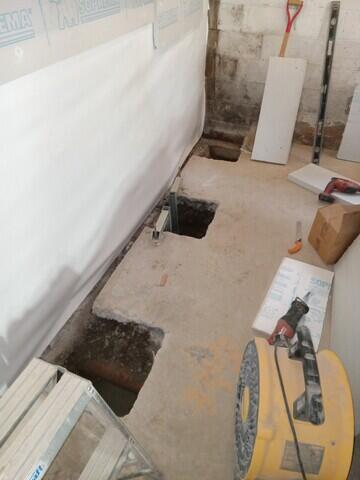

Beam pockets
These pockets will be used to pour a footing for the Powerbraces

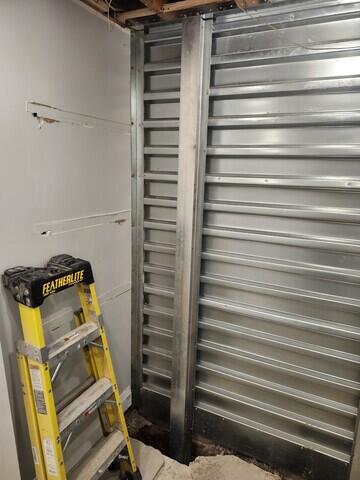

Powerbraces
The S4 galvanized beams are called the Powerbrace and the go up against the corrugated steel.
Powerbrace attched at top
Special brackets attach the Powerbrace at the top.

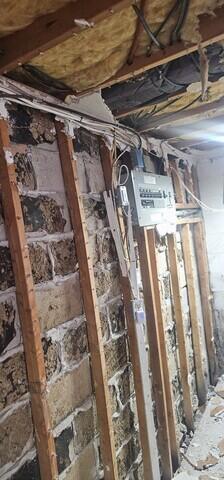

Badly bowing wall
Not only is this wall bowing but was poorly constructed.

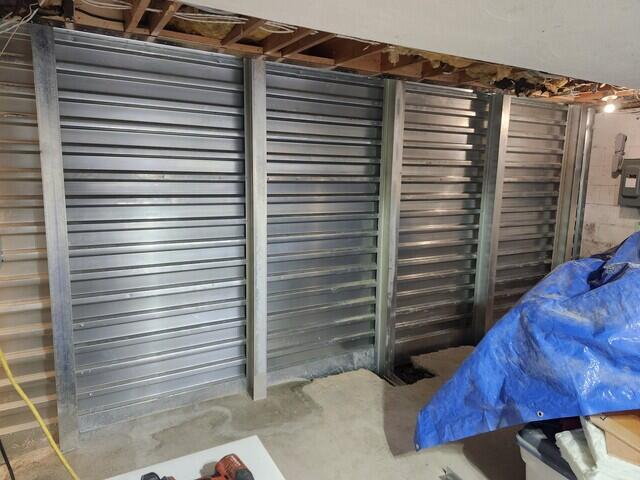

re-concrete the floor
after the panels and the Powerbrace are installed, the floor can be re-concreted tot eh original height.

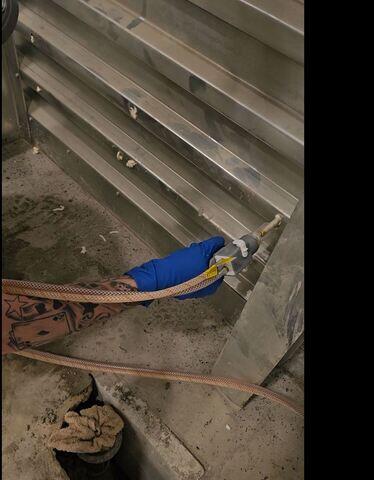

Spayfoam applied
The Spayfoam that is injected behind the panels ties everything together to solidify the wall.
