Trench
A trench is opened up around the perimeter to installed the drain tile.

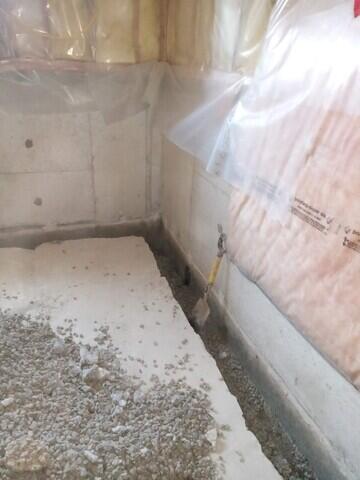

Trench dug out
The dirt is removed from the trench to add more gravel.

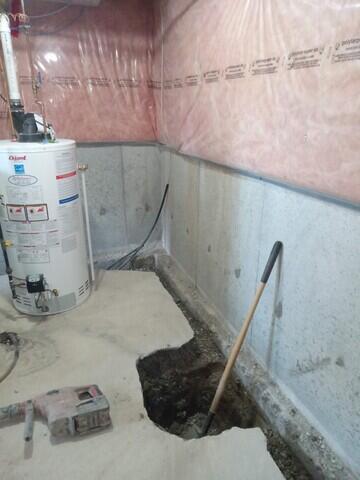

Hole for the Supersump
The hole is dug for the Supersump sump pump system.

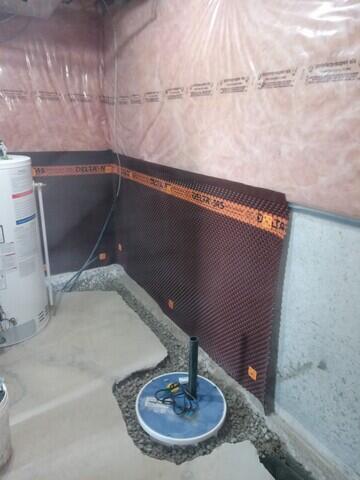

Supersump installed
The Supersump is installed at the height of the floor. The drain system is connected to the sump liner.

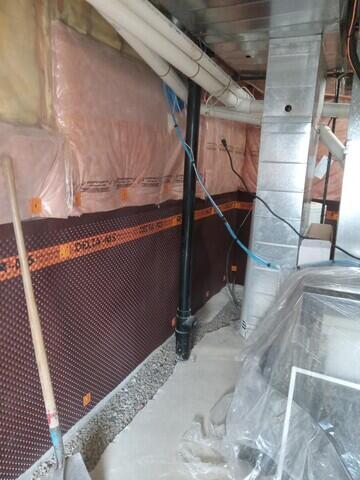

Drainage mambrane
The installed drainage membrane will direct the water down to the drain system.

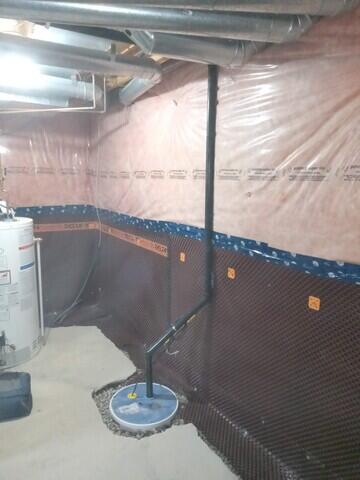

Pump and discharge line installed
The sump liner is completed with the Zoeller cast-iron pump and the discharge line is installed

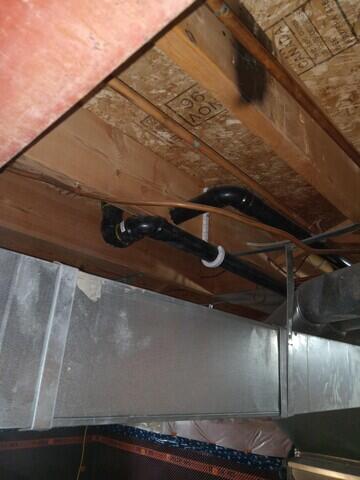

J hooks
The "J" hooks are fastened to the joists to keep teh discharge line secure.

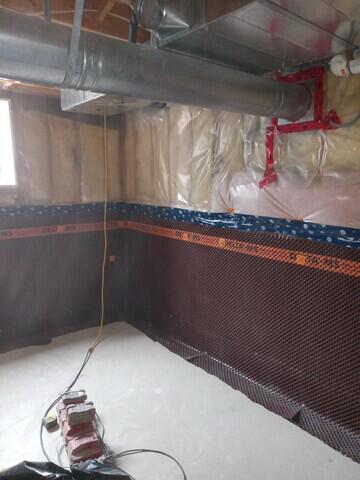

Delta MS in the trench
The Delta MS here goes over the wall and footing to direct the water to the drainage system.

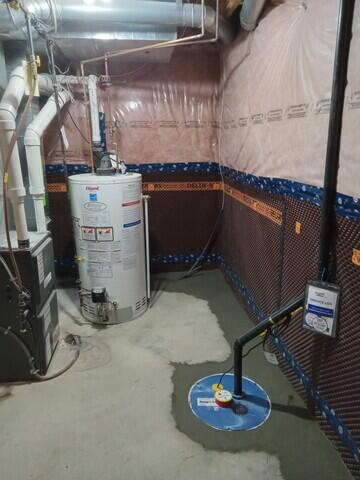

Floor re-concreted.
The Floor is finished with concrete to the same height as the original.
