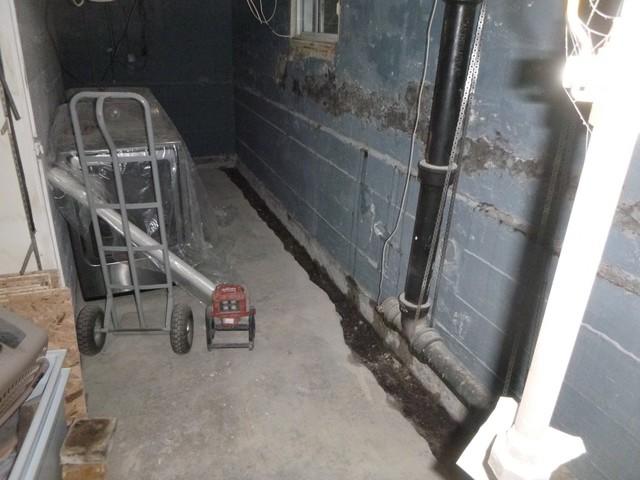

Bare basement walls
Prior to the work to be performed, the finished walls had to be removed to expose the block walls.

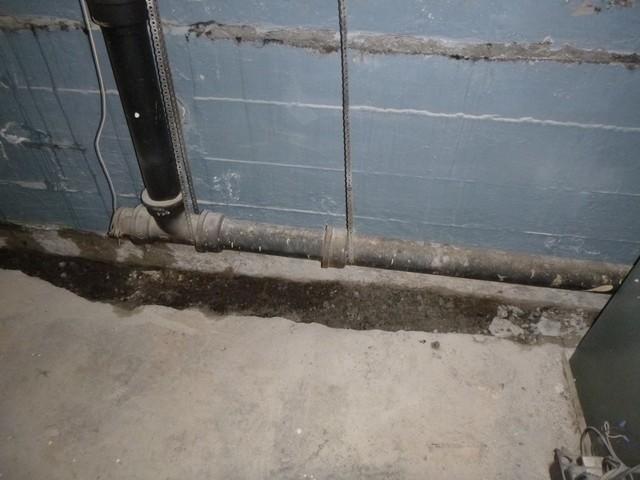

Sometimes there are obstacles to work around. in htis case, a pipe just off the floor makes it difficult to work around
The drainage system is drained to the SuperSump sump system

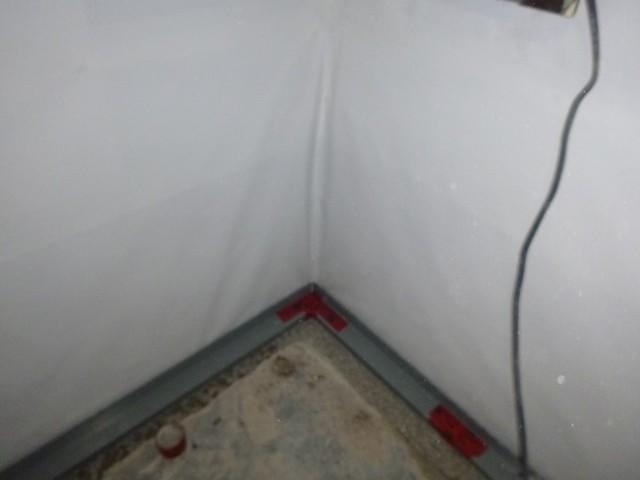

The drainage system used is the patented WaterGuard

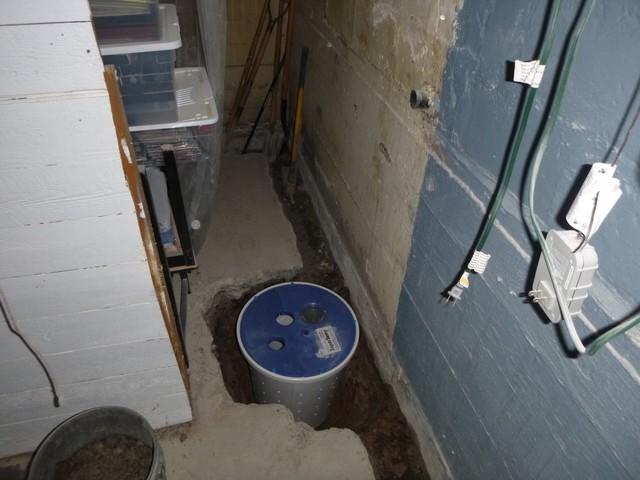

This is here the WaterGuard drains to the sump pump sytem

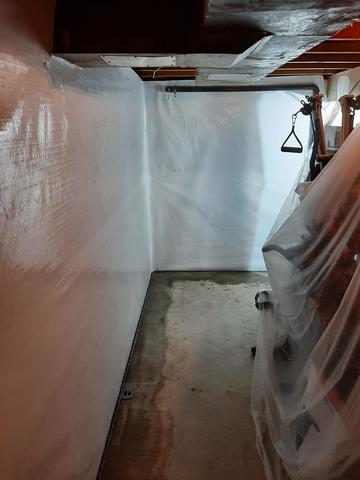

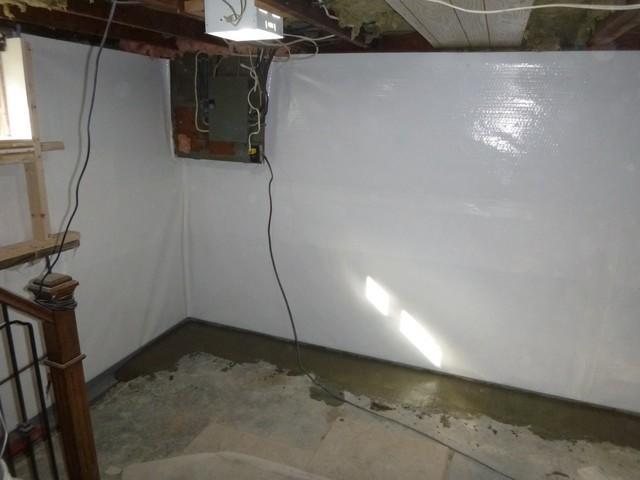

Cleanspace wall mmembrane
Cleanspace is added to the walls to drain any moisture down to the WaterGuard

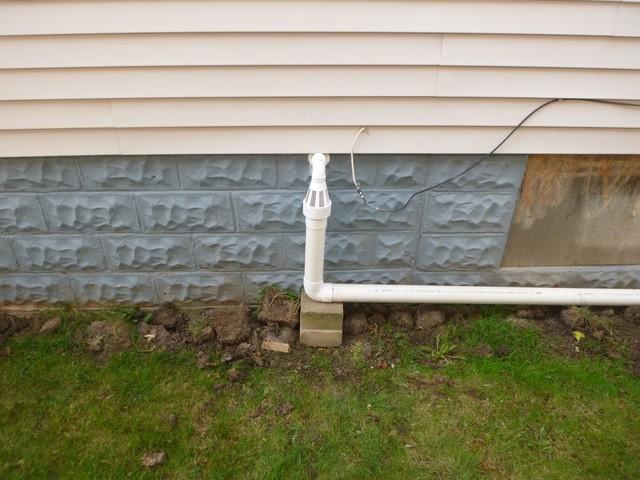

IceGuard is added to sump discharge to prevent freezing in winter. There are no valves for the homeowner to turn. If the discharge freezes, the water will temporarily come out the holes and direct the water from the home.
basement-to-Beautiful wall panels
These panels features Insulation, wall studs and electrical chases all in one. Once installed, customer merely fastens a fire rated wall finish right over top. The electrical chases are 16" off the floor and 54" off the floor and vertically every 2'. So you know exactly where the electrical is located if you ever have to add something.
Before finish panel
The drainage membrane goes on prior to the insulation panels to make sure everything stays dry

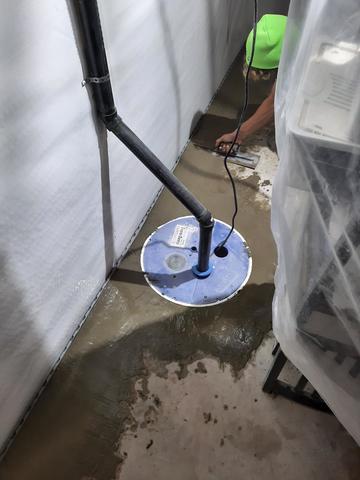

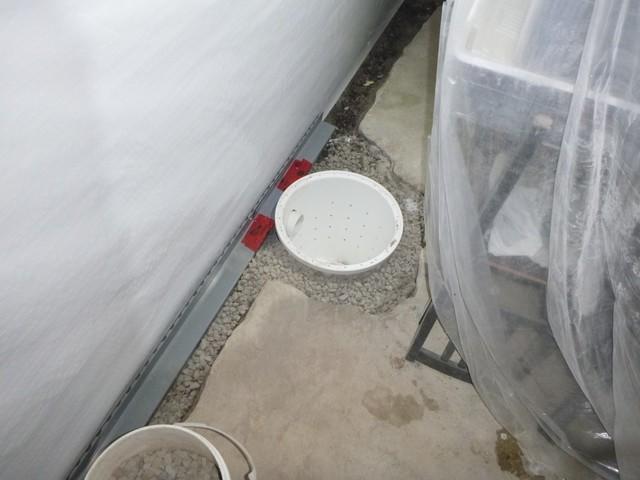

New sump system is installed which includes a Zoeller M63 pump, waterwatch alrm and Cleanpump stand for the pump to sit on.

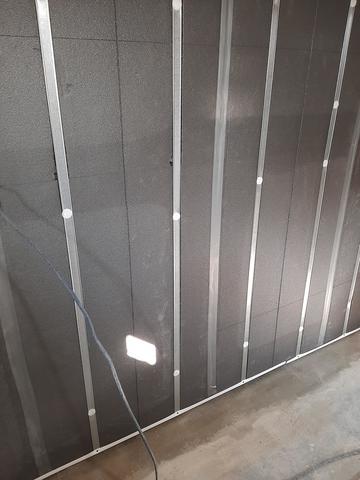

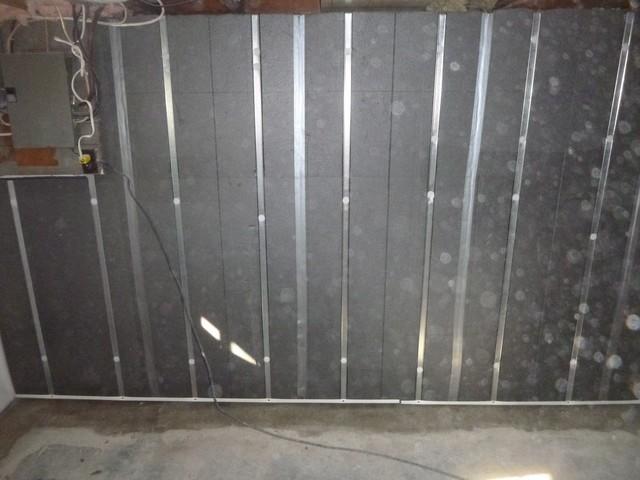

The panels features metal studs that only goes about an inch into he foam so that no heat transfer can go to the cold basement foundation walls

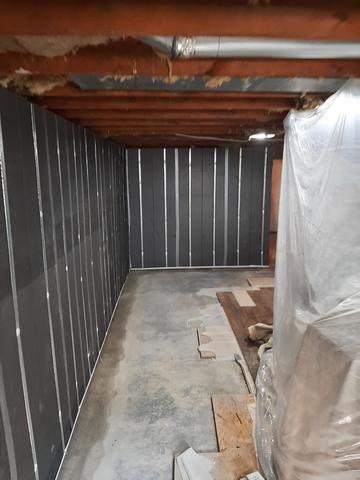

Ready accept drywall
Waterproofed and insulated with studs ready to accept a fire rated wall such as dry wall.
